Rainbow Astro RST-135 Weightless Mount
You don’t need counterweights anymore.
You will take your dream shot anywhere if you have RST-135.
SPECIFICATION
Mount TypeEquatorial / Alt-Az Dual Mount
Type of GearStrain Wave Gear
Payload13.5kg (30lbs) - No need counterweight
18kg (40lbs) – Use counterweight
Slew Speed6º / Second
Latitude Range0º to 90º
Power Input12 to 16V DC
Power Consumption0.2A - Tracking, 16V
3A - Slewing, 16V
Weight3.3kg (7.3lbs)
Size(mm)130 x 120 x 190
MaterialsAL 6061, Steel, Brass
ASCOMSupport ASCOM Driver
Hand ControllerIncluded
Additional FunctionBuilt-in WiFi
Built-in GPS Receiver
Built-in Home Sensor
OVERVIEW
The RST-135 uses a new type of gear, strain wave gear. Due to the strong force of the strain wave gear and the motor, counterweight is not needed. The mount weights only 3.3kg, but you can use a 13.5kg telescope. We call this breakthrough mount a Weightless Mount. The volume and weight of the mount is no longer a problem in a trip for astrophotography.
FEATURES
Compact and light
Mount weighs only 3.3kg. You do not need a separate bag for Mount. Just put it in your backpack.

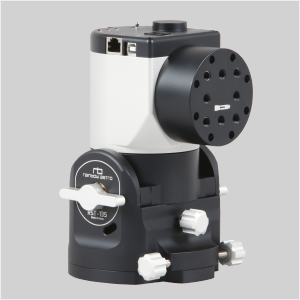

Equatorial / Alt-Az dual Mount
You can easily change to Equatorial mode and Alt-Azi mode. Show your family a star easily in Alt-Azi mode.

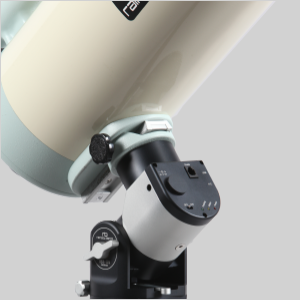

No need counterweight
You do not need a counterweight to use a 13.5kg telescope.
Beauty of machined product
Feel the beauty of machined product. All parts of RST-135 are made by machining solid block. The RST-135 is the perfect premium mount.

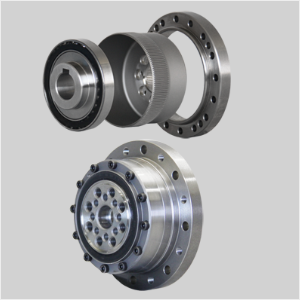

Strain wave gear
It is a new type of gear which is widely used in industrial robots. There is no backlash.
Built-in WiFi
This Mount has built-in WiFi. You can control and auto-guide the mount without cable.
Built-in GPS receiver
Built-in GPS receiver eliminates the need to enter the location of the observer.
Built-in Home sensor
Home sensor finds the mechanical origin by itself. This is useful for remote observation.
